eaZIsoft ROBUSTO

The eaZIsoft ROBUSTO is a versatile fluid damper that impresses with its adaptability and excellent performance. With a 50 mm stroke, this damper is ideal for a wide range of applications where precise damping is required.

Advantages:

• Different force curves: The eaZIsoft ROBUSTO is available in different force curves, which are mapped via the housing. This enables precise customisation to the respective requirements.

Various coupling options:

Different couplers are available so that the damper can be easily integrated into different systems.
• Variable damping forces: The eaZIsoft ROBUSTO can be equipped with different forces in order to be optimised for the specific needs of the application.
• Single damper or integration: The damper can be used as a single damper or integrated into pull-in units, offering maximum flexibility.
• High production capacity: The eaZIsoft ROBUSTO can be produced fully automatically in high quantities, ensuring efficiency and cost savings.

Function:

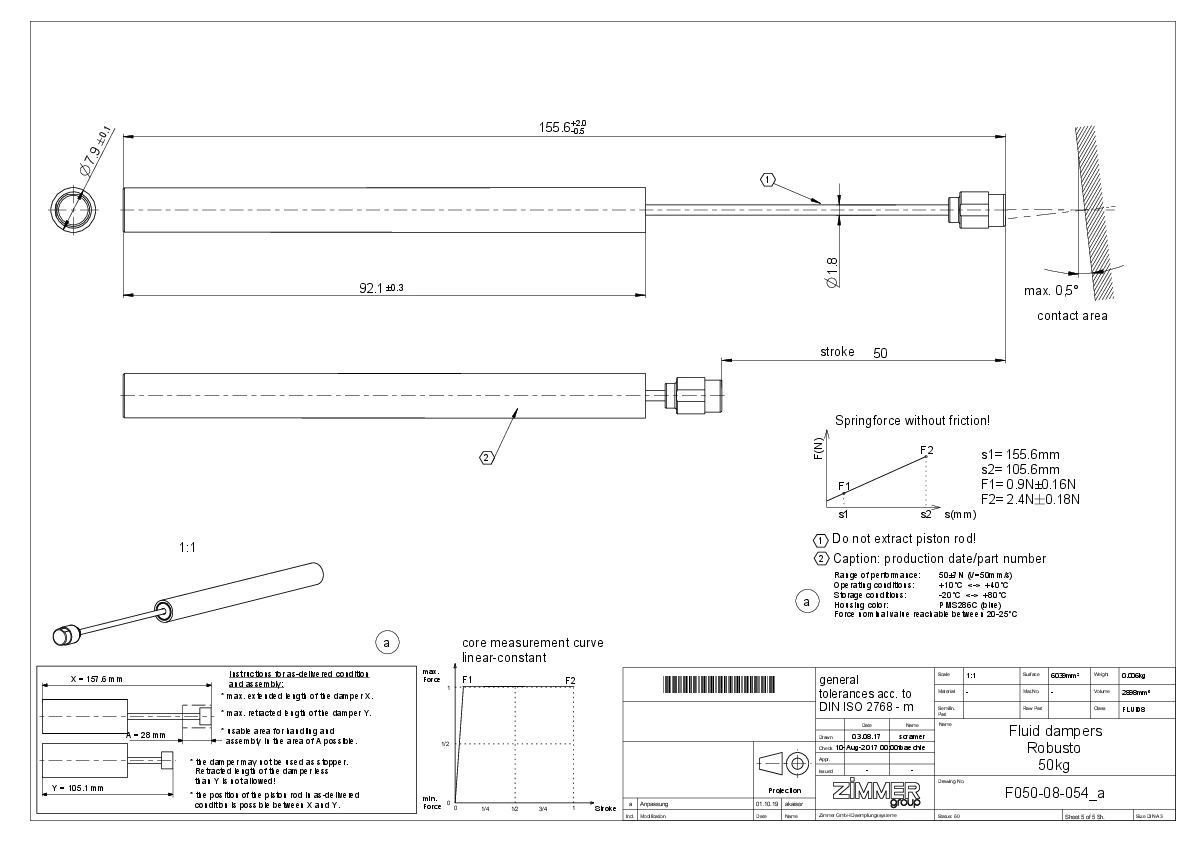

The eaZIsoft ROBUSTO is a unidirectional fluid damper that acts as a pressure damper. With a stroke of 50 mm, it can be manufactured both with and without a return spring. The damper can be used as a stand-alone unit or integrated into an existing system by adding a connector to the piston rod.

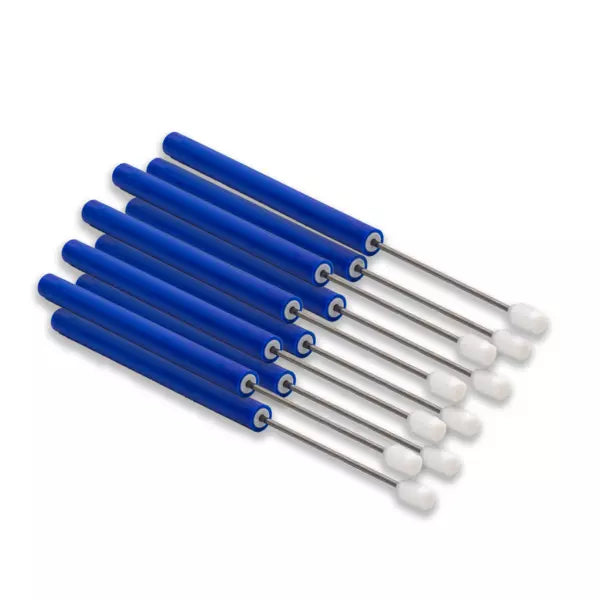

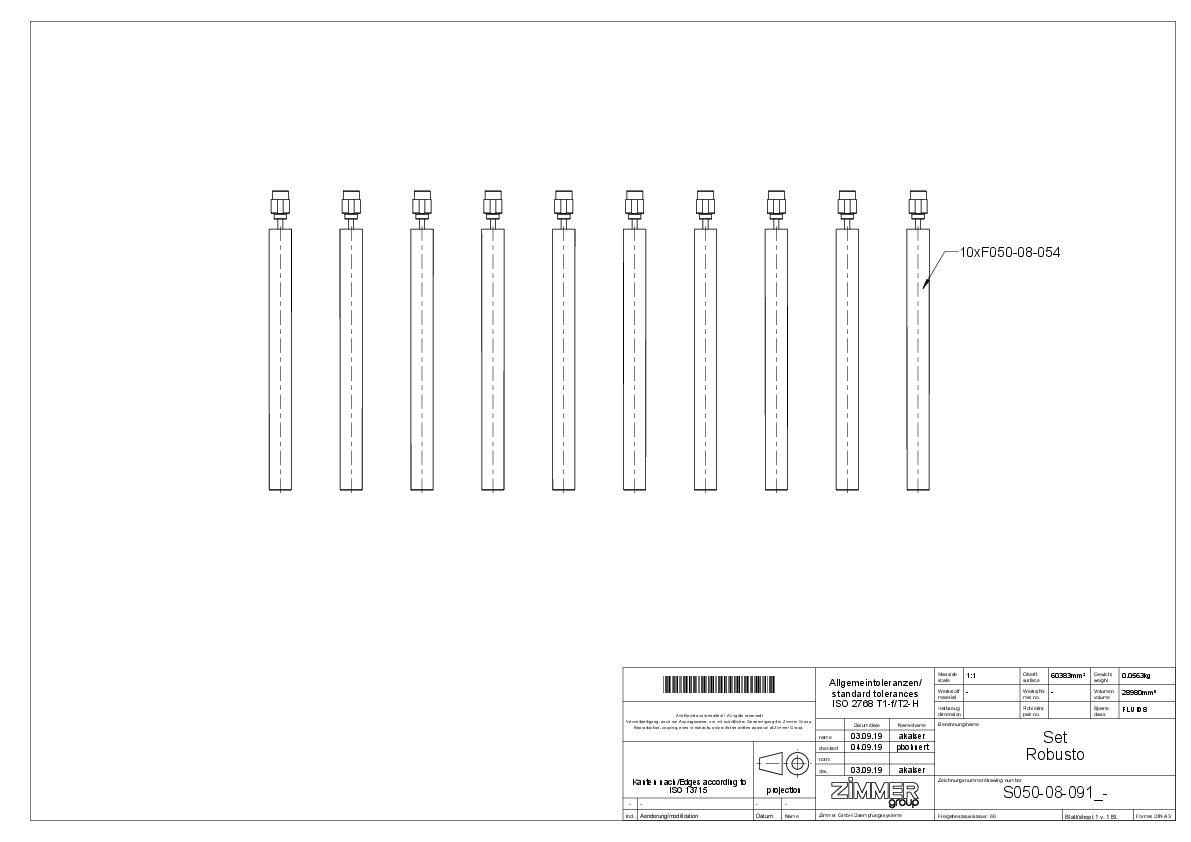

The set consists of ten dampers.

• eaZIsoft ROBUSTO
  • Part number: F050-08-054
  • Quantity: 10
