SKU: S110-15-025

eaZIconnect FORTE

Regular price 40,70 €
Tax included Shipping calculated at checkout.

Description

SOFT CLOSE unit eaZIconnect FORTE - Soft closing for drawers and sliding doors

The SOFT CLOSE unit eaZIconnect FORTE ensures a smooth, controlled and silent closing movement of drawers and sliding doors. The high-quality air friction damper prevents slamming, which protects furniture and extends its service life. Ideal for retrofitting or as an upgrade for existing furniture.

Product features & advantages

  • Versatile use: Perfect for drawers, sliding doors and more.
  • Effective damping: The 110 mm ensures smooth, even and secure closing.
  • Easy retrofitting: The unit can be quickly and easily integrated into existing furniture.
  • High load capacity: Also suitable for heavy doors up to 50 kg - ideal for robust sliding door systems.
  • Customisable mechanism: Available with different latching levers for different requirements.
  • Safe & quiet: Reduces noise, prevents damage from hard slamming and extends the life of the furniture.

Easy installation & retrofitting

The SOFT CLOSE unit eaZIconnect FORTE can be fitted in a few simple steps and is ideal for retrofitting. It is compatible with many standard drawer and sliding door systems and significantly improves the comfort and durability of your furniture.

Why SOFT CLOSE unit eaZIconnect FORTE?

  • Protects furniture from rapid wear and tear
  • Improves the quality of living thanks to quiet closing
  • Increases the value and functionality of furniture
  • Universally applicable in private households, offices and commercial facilities

Give your furniture an upgrade with our SOFT CLOSE technology - for more comfort, durability and peace of mind!

Green energy: CO2-neutral and from the region

The Zimmer Group covers its electricity requirements with CO2-neutral energy sources as far as possible. A portion comes from a nearby power plant, while the rest is produced by the company's own photovoltaic systems. The expansion of further solar modules is in full swing.

The set contains the unit and matching activators.

Bill of materials

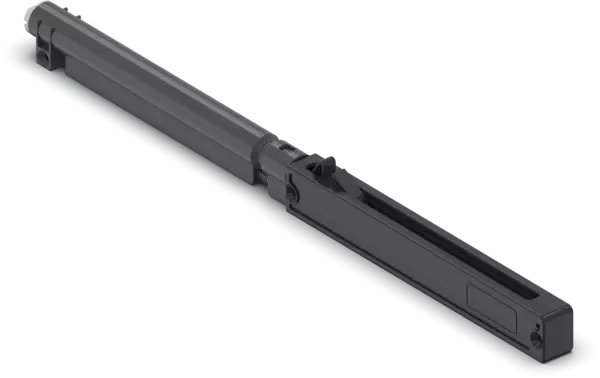

  • eaZIsilent FORTE
    • Part number: E110-15-008
    • Quantity: 1

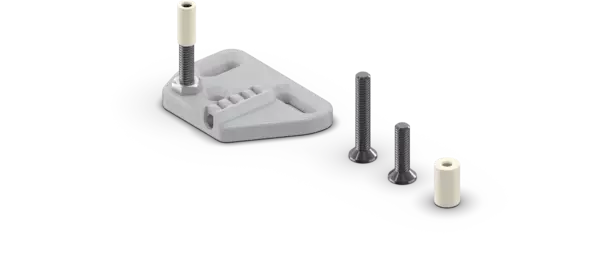

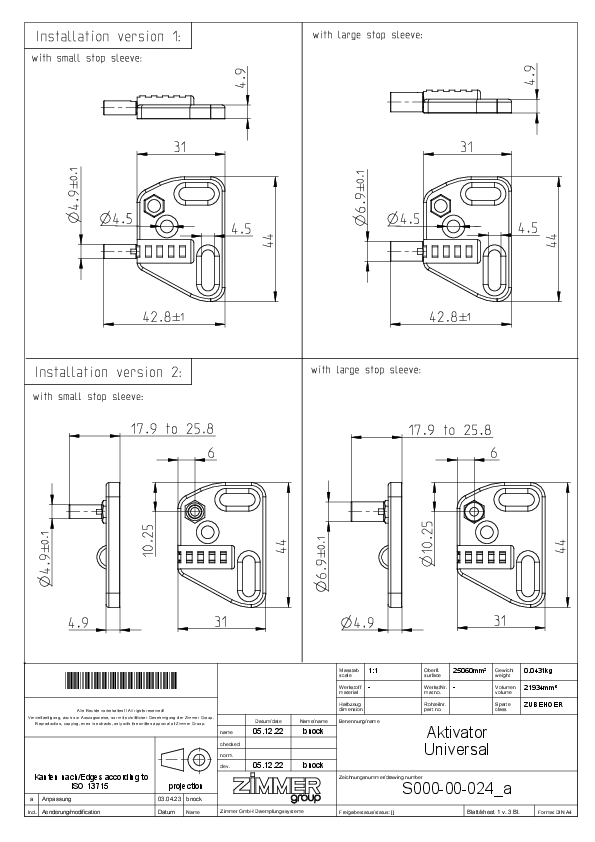

  • eaZIpart ACTIVATOR
    • Part number: S000-00-024
    • Quantity: 1
  • Medium
    Air
  • Technology
    Air friction
  • Lifetime
    100,000 cycles
  • Field of application
    10 - 40 °C
  • Stroke
    110 mm
  • Direction of action
    inside closing
  • Freerun
    yes
  • Hook type
    Type S
  • Hook color
    black RAL9005
  • Hook material
    POM
  • Limited use
    no
  • Spring material
    EN 10270
  • Spring force F1
    14 N
  • Spring force F2
    34 N
  • Length
    326 mm
  • Width
    16 mm
  • Height
    28.5 mm
  • Drilling spacing
    308.7 mm
  • Drilling version 1
    with reduction
  • Fixing screw Ø
    3.5 mm
  • Housing construction
    two-piece clipped
  • Housing color
    black RAL9005
  • Housing material
    POM
  • Assembly 1
    Screw-on
  • Carton, PU
    1 piece
  • Cardboard, weight
    4.2 kg
  • Cardboard, width
    375 mm
  • Cardboard, length
    345 mm
  • Cardboard, height
    136 mm
