• Over 20 years of experience

  • Proven Quality

  • Highly automated manufacturing

  • Made in Germany

SKU: S100-08-022

eaZIconnect CHIUSO 100 L

Regular price 48,02 €
Tax included Shipping calculated at checkout.

Description

The SOFT CLOSE unit eaZIconnect CHIUSO 100 L stands for state-of-the-art technology, excellent workmanship and a high degree of adaptability, making it suitable for a wide range of applications. With its innovative features, it offers a reliable solution for technical and industrial requirements. eaZIconnect CHIUSO 100 L was specially developed to improve efficiency and functionality in a wide variety of areas. Thanks to its robust design and flexible configuration options, eaZIconnect CHIUSO 100 L fulfils both standard requirements and special needs.

The special thing about eaZIconnect CHIUSO 100 L is its versatility. The SOFT CLOSE unit can be customised in different variants to meet different technical requirements. The sophisticated design ensures easy integration into existing systems. At the same time, it impresses with its long service life and consistently precise function - even under intensive use.

Properties and benefits

eaZIconnect CHIUSO 100 L has a wide range of technical features that make it an optimal choice for various areas of application. The flexible configuration options make it possible to tailor the product perfectly to specific requirements. From the design to the choice of materials, every detail has been carefully considered to ensure maximum efficiency.

The product is robust and resistant to stress and wear, making it ideal for long-term use. In addition, the precise workmanship ensures exact functionality in every application. The ease of maintenance and the ability to easily integrate it into existing systems also contribute to its high utility value.

Conclusion

With eaZIconnect CHIUSO 100 L, you get a product that combines state-of-the-art technology with practice-orientated functionality. It is the perfect solution for anyone who values quality, flexibility and efficiency. Whether for use in industrial applications, technical devices or other areas - eaZIconnect CHIUSO 100 L impresses across the board. Its numerous customisation options, high durability and reliable performance make it an excellent choice.

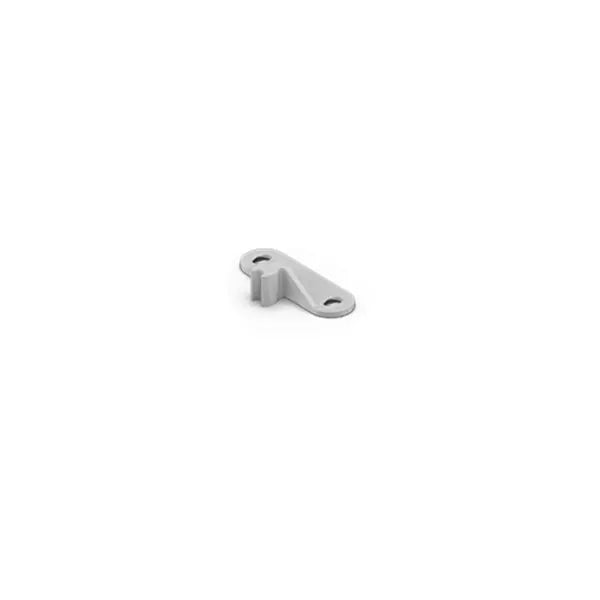

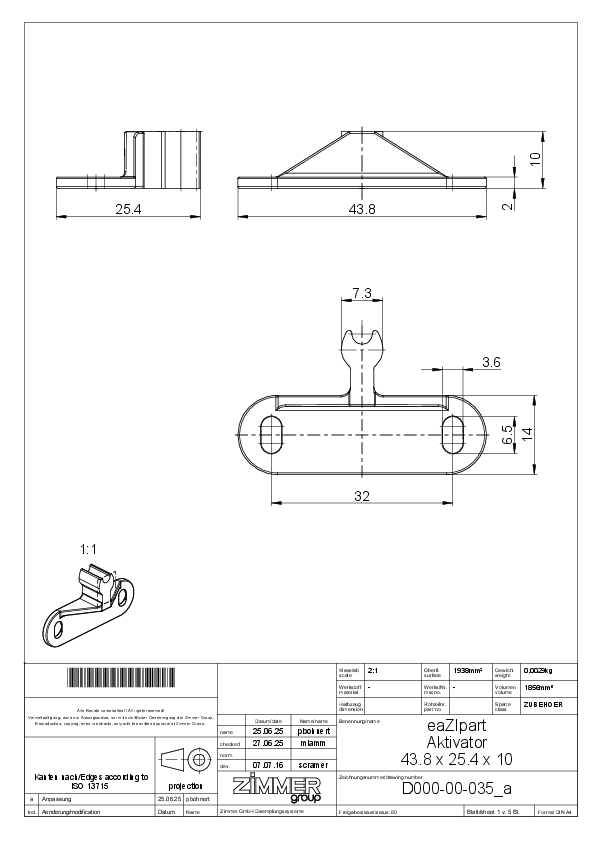

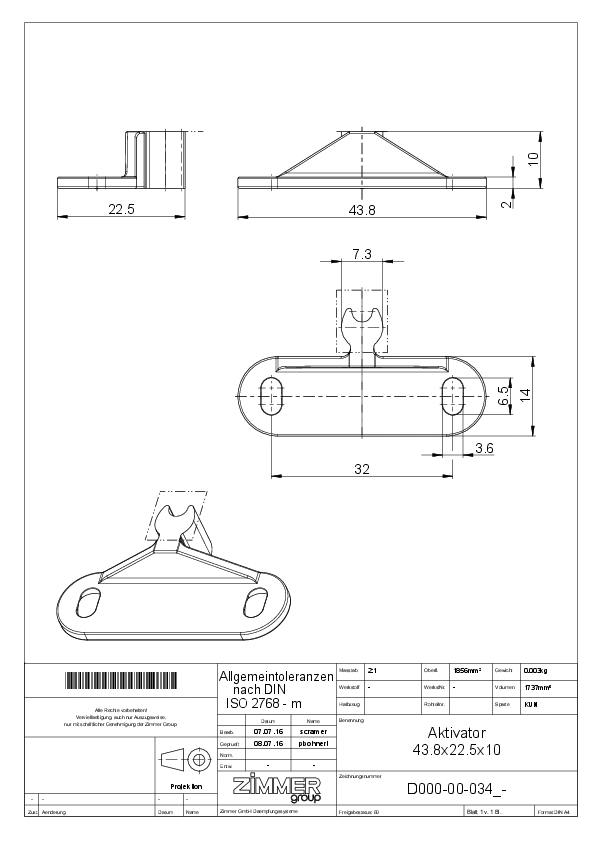

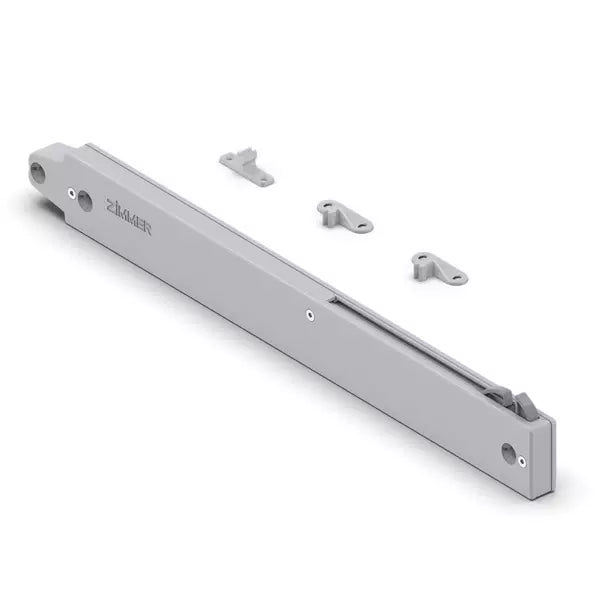

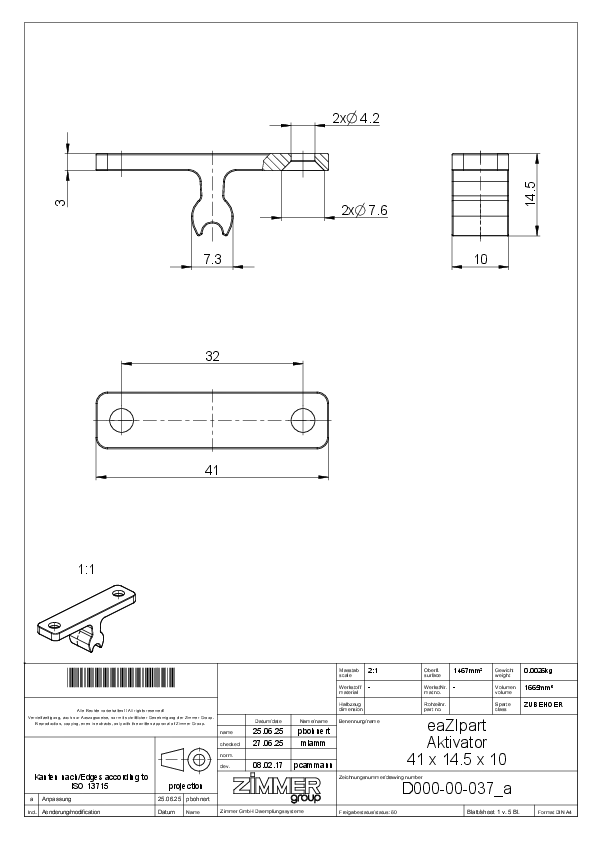

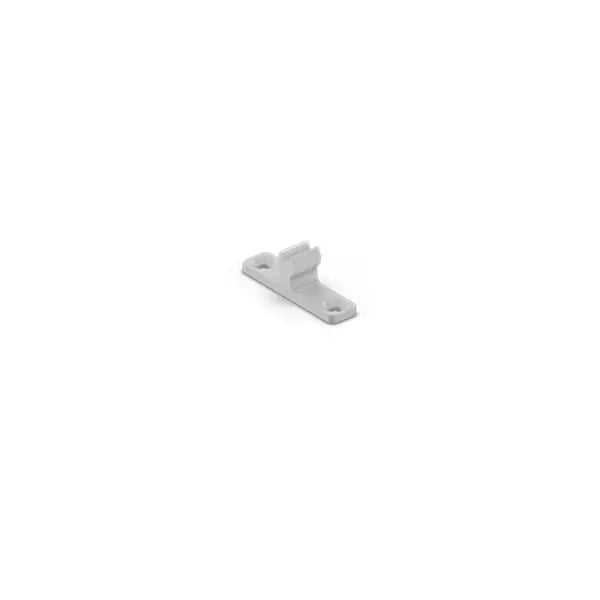

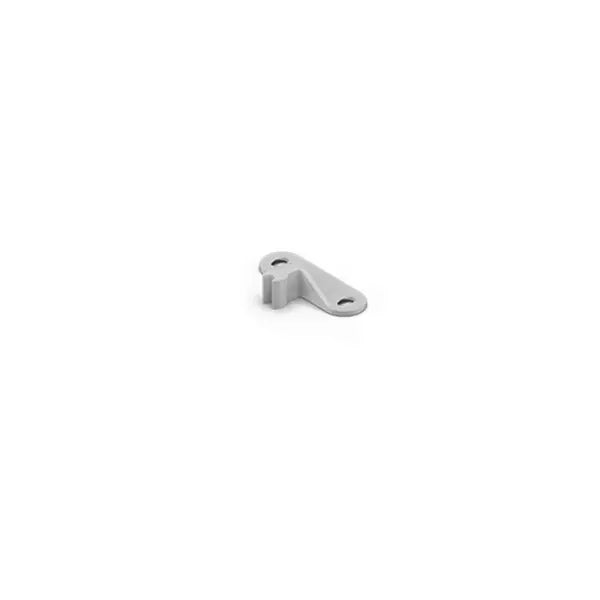

The set contains the unit and matching activators.

Bill of materials

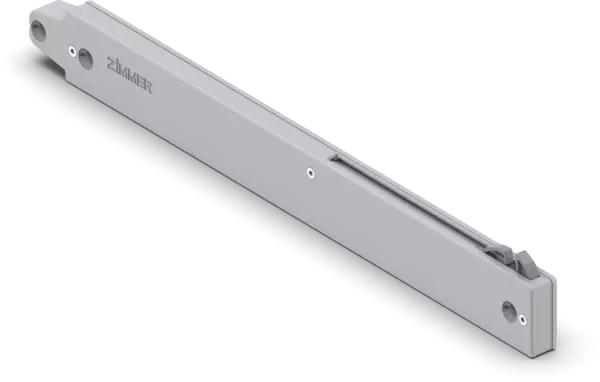

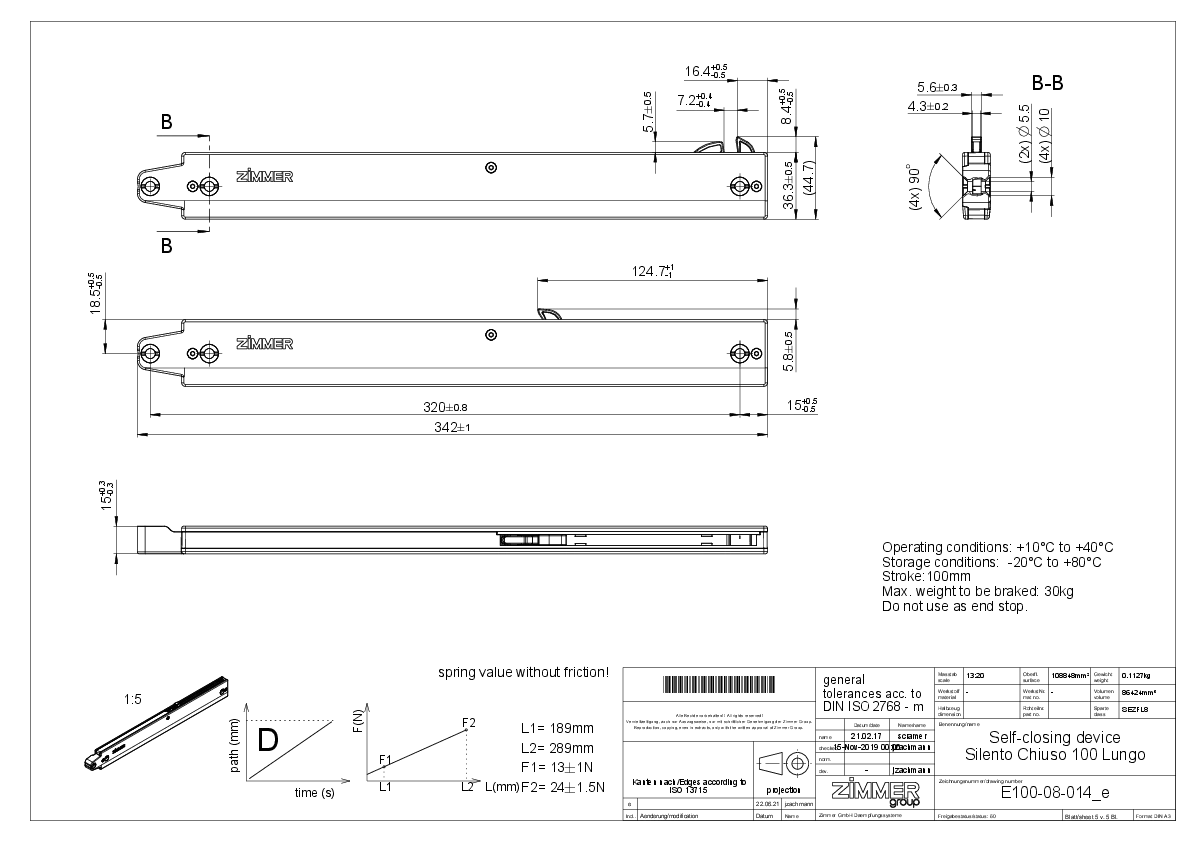

  • eaZIsilent CHIUSO 100-L
    • Part number: E100-08-014
    • Quantity: 1
  • Medium
    Fluid
  • Technology
    Defined Comfort
  • Lifetime
    100,000 cycles
  • Field of application
    -10 - 40 °C
  • Stroke
    100 mm
  • Direction of action
    external closing
  • Freerun
    no
  • Hook color
    nature
  • Hook material
    Polyketones
  • Limited use
    no
  • Spring material
    EN 10270
  • Spring force F1
    13 N
  • Spring force F2
    24 N
  • Length
    342 mm
  • Width
    15 mm
  • Height
    44.7 mm
  • Drilling spacing
    320 mm
  • Fixing screw Ø
    5.5 mm
  • Housing construction
    two-piece screwed
  • Housing color
    grey RAL7035
  • Housing material
    PC/ABS
  • Carton, PU
    1 piece
